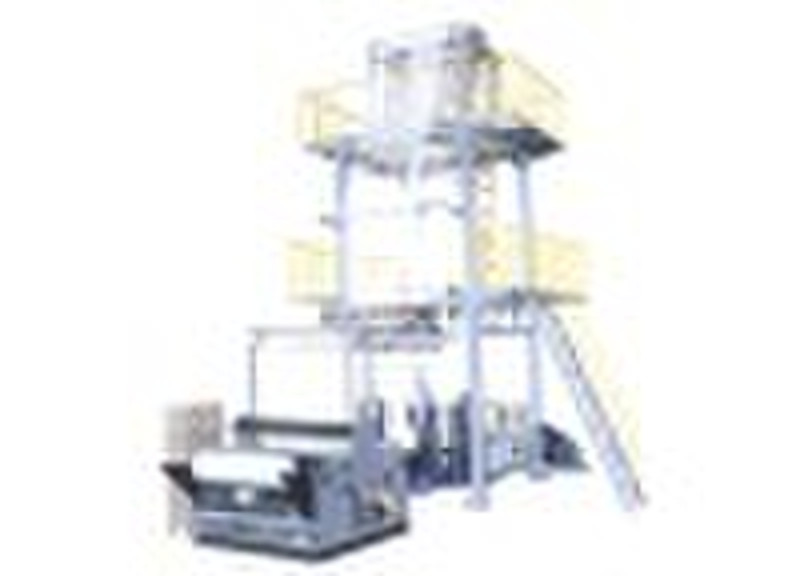

RHT45X2/FM1000 Double-layer Co-extrusion Rotary Ma

Model RHT-45×2/FM1000 RHT-50×2/FM1200 RHT-55×2/FM1500 Screw Diameter 2×45mm 2×50mm 2×55mm Screw Ratio L/D301 L/D301 L/D301 Screw Speed 12-120r/min 12-120r/min 12-120r/min Output of Single-desk Extrude Machine 35kg/h 50kg/h 60kg/h Power of Main Motor 2×11Kw 2×15Kw 2×15Kw Caliber of Film Head 200-250mm 250-300mm 300-350mm Rotational Mode of Machine Head Continuous rotation Continuous rotation Continuous rotation Single-sided Thickness of Film 0.02-0.10mm 0.02-0.10mm 0.02-0.10mm Max Folding Width of Film 1000mm 1200mm 1500mm Total Power 42Kw 53Kw 65Kw Weight of Machine 3500kg 4500kg 5200kg Overall Dimensions 4200×2200×4600mm 4600×2400×5000mm 5200×2700×6000mm
